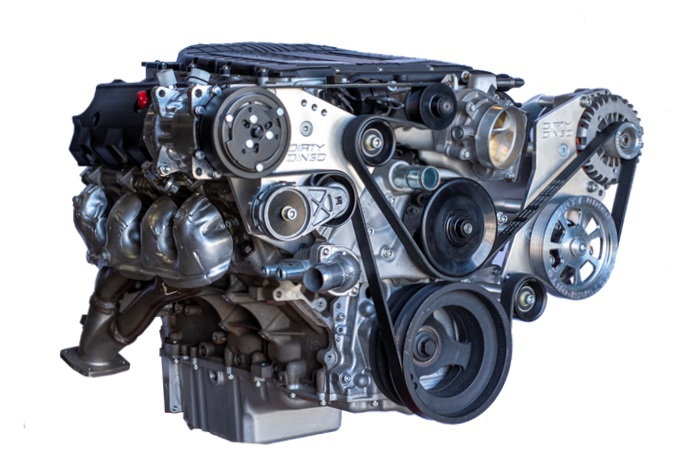

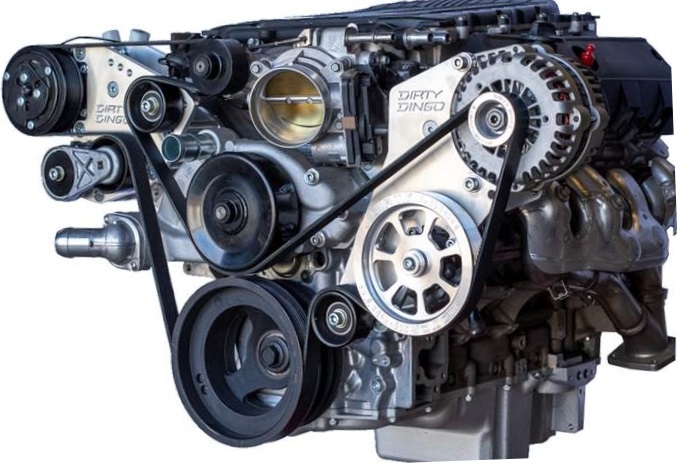

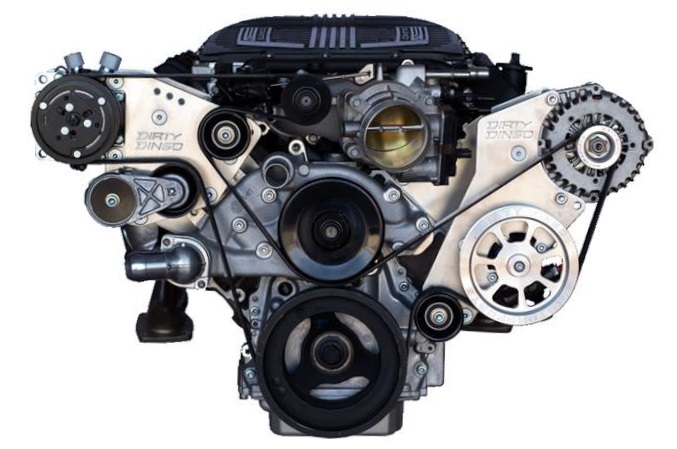

LT4 8 rib "Front Engine Accessory Drive" kit. Will NOT fit Corvette LT4 spacing blowers. Billet aluminum alternator, power steering and AC brackets for 2014+ LT GEN V engines using the factory Camaro ZL1 or CTS-V LT4 harmonic balancer. The alternator and power steering bracket is designed to fit all LS/LT alternators with the 5.46" AND the 6.06" mounting bolt hole patterns. Designed for a 98-02 Camaro power steering pump.

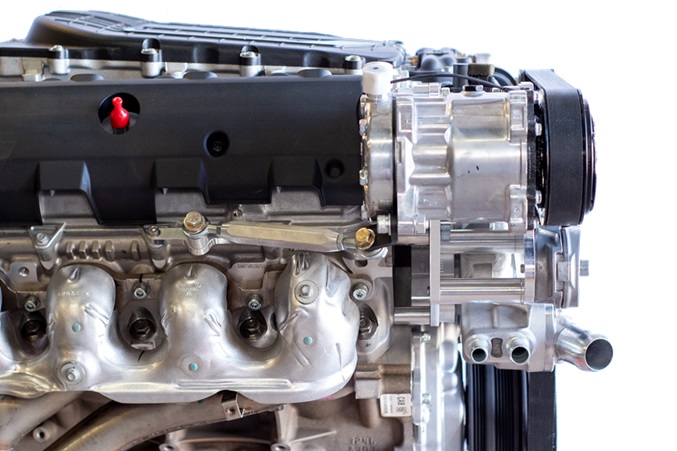

Must use Sanden 4711 8 rib 508 Compressor. This set-up will require using an aftermarket remote power steering reservoir.

Multiple hole locations for the AC idler pulley for using the factory or smaller supercharger pulleys.

Kit includes both engine side accessory brackets, billet aluminum 8 rib power steering pulley, billet aluminum 8 rib alternator pulley, both idler pulleys, tensioner, billet water pump adapter kit, and 8 rib serpentine belt.

CNC machined from 1/2" 6061-T6 billet aluminum to 3/8 thick on a precision vertical CNC milling center.

Install instructions

Kit includes-

- Billet alternator/power steering bracket, Idler pulley, billet 8 rib alternator pulley, Billet 8 rib power steering pulley.

- AC- Billet AC bracket, idler pulley, tensioner.

- Billet power steering return press in fitting.

- New 8 rib belt.

- Patented billet water pump adapter kit

* Will only work with patented billet water pump adapter

* Will only work with a Sanden model 4711 8 rib AC compressor

* Must use a factory Camaro ZL1 or CTS-V LT4 harmonic balancer. GM:12687725

* Designed to fit all LS/LT alternators with the 5.46" and 6.06" bolt pattern. CAN NOT USE AN ALTERNATOR WITH A DECOUPLER PULLEY!

* Designed to fit 1998-02 Camaro LS1 power steering pump

* Designed to fit a Gen IV 2008 Corvette LS3 water pump. The late model Corvette water pumps with driver side upper outlet will not fit as it occupies the same space as the throttle body.
